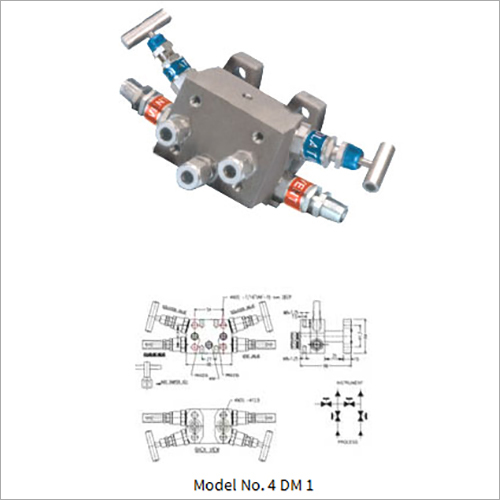

Double Isolate Four Valve Manifold

Double Isolate Four Valve Manifold
Double Isolate Four Valve Manifold
Send Inquiry
Product Code : 06
Product Description

Backed with years of experience in this industry, we are renowned for manufacturing and exporting an excellent range of Double Isolate Four Valve Manifold. This valve can operate in extreme temperatures and pressures. With non-rotating spindle tip, metal seal between body and bonnet, this Double Isolate Four Valve Manifold is 100% pressure tested. These valves are offered to clients in varied specifications in order to meet their exact needs.

Features:

  • Less leaking points
  • Weight saving designs
  • Reduced installation and maintenance time and costs

Technical specification

Connections

Process : 1/4"NPT (F) / 1/4" BSPT (F) / 10 mm OD Instrument : Flanged Drain : 1/4"NPT (F) / 1/4" BSPT (F) / 10 mm OD

Test Pressure

@ 25° C Room Temperature Hydrostatic : Body - 620 Kg/cm2 Seat - 413 Kg/cm2 Pneumatic : Seat - 40 Kg/cm2

Gland packing

PTFE : Standard GRAPHOIL : Temperatures above 180°C

Material

A 105, A 182 Gr F 304SS, A 182 Gr F 316SS, Monel, Hastelloy

Finish

CS : Zinc Plated and Dichromated; SS : Natural

Accessory

Mounting Bolts - IS : 1364 - 1960 - 4 Nos Interface seal - PTFE / VITO 'N' - 2 Nos
