Female Manometer Adapter

Female Manometer Adapter
Female Manometer Adapter
Send Inquiry
Product Code : 41
Product Description

We have been engaged in manufacturing and exporting an extensive range of Female Manometer Adapter since years. Our highly experienced team uses premium quality materials for manufacturing this adapter in strict tandem with the industry standards. Our entire range is high in demand in industries for providing leak proof connection in the installation of manometers. This Female Manometer Adapter is offered to clients at reasonable price.

Features:

  • Accurate dimensions
  • Sturdy design
  • Smooth finishing

Technical specification

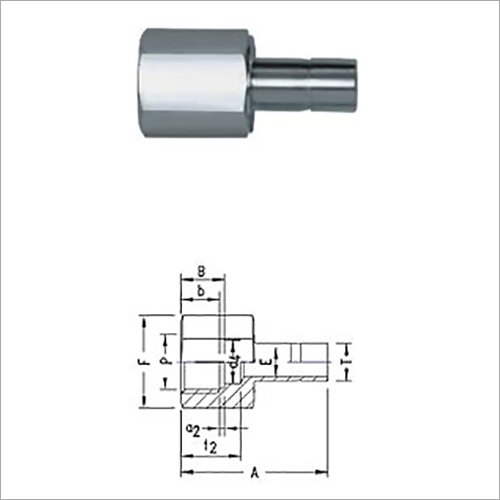

INCH OD Ports X Female ISO* Parallel Threads (gage)

T Tube OD

P ISO Female

A

B

E
min

F
A/F

a2

d4

b
min.

12

Fluid Controls
Part No.

1/4

1/4

35.3

13.0

4.8

19

1.6

5.8

9.4

17.0

4 SAF-MAN

3/8

3/8

39.4

14.2

6.6

24

1.6

-

9.9

-

6 SAF-MAN

1/2

1/2

45.7

18.8

7.1

27

1.6

-

14.5

-

8 SAF-MAN

METRIC OD Ports X Female ISO* Parallel Threads (gage)

T Tube OD

P ISO Female

A

B

E
min

F
A/F

a2

d4

b
min.

12

Fluid Controls
Part No.

6
6
6

1/4
3/8
1/2

35.3
38.4
42.9

12.9
14.1
18.9

4.6
4.6
4.6

19
24
27

1.6
1.6
1.6

5.5
6.5
7.0

9.5
10.0
14.5

17.0
20.3
24.9

SAF 6-4MAN
SAF 6MAN
SAF 6-8MAN

8
8

1/4
1/2

33.0
43.7

12.9
18.9

5.5
6.2

19
27

1.6
1.6

-
7.0

9.5
14.5

-
24.9

SAF 8-4MAN
SAF 8MAN

10
10

1/4
1/2

34.5
40.1

12.9
18.9

5.5
7.0

19
27

1.6
1.6

-
-

9.5
14.5

-
-

SAF 10-4MAN
SAF 10-8MAN

12
12

1/4
1/2

40.1
48.8

12.9
18.9

5.5
7.0

19
27

1.6
1.6

-
-

9.5
14.5

-
-

SAF 12-4MAN
SAF 12-8MAN
