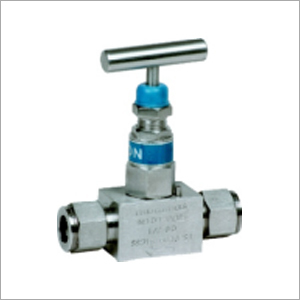

Instrumentation Valves

Instrumentation Valves
Instrumentation Valves
Product Code : 02
Product Description

We feel immense pleasure in introducing ourselves as one of the prominent manufacturers These Instrumentation Valves are ideal for low pressure and high pressure applications. Highly suitable for liquid and gas services, these valves are offered in various openings, sizes and specifications for meeting clients’ diverse needs. These Instrumentation Valves are made of robust corrosion resistant materials in complete compliance with the industry standards.

Features:

  • Tight shut off
  • Leak proof designs
  • Excellent resistance against chemicals, acids and alkalis

DESCRIPTION

Designed for use in purpose applications for throttling and straight shut off of liquids, gas or vapour service. These needle valves are available with a variety of end connections and stem packing.

Test Pressure

25° C Room Temperature

Hydrostatic

Body - 620 Kg/cm2
Seat - 413 Kg/cm2

Pneumatic

Seat - 40 Kg/cm2

Gland Packing

PTFE : Standard
Graphoil : Temperatures above 180° C

Material

A 105, A 479 SS304, A 479 SS316, A182 Gr F 316 SS Monel, Hastelloy

Finish

CS zinc plated and dichromated. SS Natural

CONNECTIONS

TUBE

A

A1

B

C

DA/F

PART No.

1/4" /6mm

67.8

36.0

25

89

14

4 NV-T/NV-T-6

5/16" /8mm

67.8

34.5

25

89

16

5 NV-T/NV-T-8

3/8" /10mm

70

35

25

89

17

6 NV-T/NV-T-10

1/2" /12mm

86.5

40.5

28

90

22

8 NV-T/NV-T-12

3/4" /20mm

92

42

28

110

28.5

12 NV-T/NV-T-20
