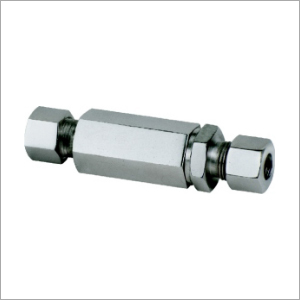

Non Return Valve – Single Ferrule Metric Tube End

Non Return Valve – Single Ferrule Metric Tube End
Non Return Valve – Single Ferrule Metric Tube End
Send Inquiry
Product Code : 12
Price And Quantity
  • Unit of Measure
  • ,
Product Description

We have achieved a reputed position in this industry by manufacturing and exporting an excellent range of Non Return Valve – Single Ferrule Metric Tube End. This valve is a high pressure fitting, specially made for free flow in one direction only with minimum pressure drop. Soft seating in this valve type arrangement without any force on the soft seals results in zero leakage at back pressure. Available with screwed ends in single and double ferrule design and combination of screwed and pipe/tube ends, this Non Return Valve Single Ferrule Metric Tube End is available for clients in various specifications for meeting their exact needs.

Features:

  • Protection against corrosion
  • Dimensional accuracy
  • Light weight


Cracking Pressure

0.3TO 0.5 Kg/cm2 - STANDARD
Special Cracking Pressure Available

Test Pressure

25° C Room Temperature

Series

L Series                    S Series


PN 250                      PN 400

Hydrostatic

Body - 375 Kg/cm2    Body - 630 Kg/cm2
Seat - 250 Kg/cm2    Body - 400 Kg/cm2

Pneumatic

Seat - 40 Kg/cm2     Seat - 40 Kg/cm2

Seal

BUNA 'N', VITON

Material

A 105, A 479 SS304, A 479 SS316, Monel, Hastelloy

Finish

CS zinc plated and dichromated. SS Natural



Series

Tube O.D.

S1

S2

L 1

L2

Approx.

Part No.

L
SERIES
PN 250

6

22

14

56

86

NRD-6-L

8

22

17

56

86

NRD-8-L

10

27

19

69

99

NRD-10-L

12

27

22

71

101

NRD-12-L

15

32

27

75

105

NRD-15-L

18

41

32

85

118

NRD-18-L

22

41

36

89

122

NRD-22-L

28

50

41

98

131

NRD-28-L

35

65

50

118

161

NRD-35-L

42

65

60

117

163

NRD-42-L

S
SERIES
PN 400

6

22

17

61

91

NRD-6-S

8

22

19

61

91

NRD-8-S

10

27

22

70

103

NRD-10-S

12

27

24

72

105

NRD-12-S

14

32

27

77

113

NRD-14-S

16

32

30

77

114

NRD-16-S

20

41

36

88

131

NRD-20-S

25

50

46

97

145

NRD-25-S

30

50

50

100

153

NRD-30-S

38

65

60

119

181

NRD-38-S
