Reducing Union Tee

Reducing Union Tee
Reducing Union Tee
Send Inquiry
Product Code : 16
Product Description
We are the leading manufacturer and exporter of an extensive range of Reducing Union Tee. This fitting is specially made for connecting three individual pipelines together of different outside diameters. Made of best quality 316 SS grade, these fittings are available in all standard sizes. High in demand in the installation of pipelines in gas distribution, offshore and onshore industry, our entire range of Reducing Union Tee is reasonable in price. The manufacturing of these fittings is done with stringent tolerances under rigid quality control procedures, ensuring safety, performance and reliability of service.

Features:
  • Completely leak proof
  • Rust resistant
  • Rugged design

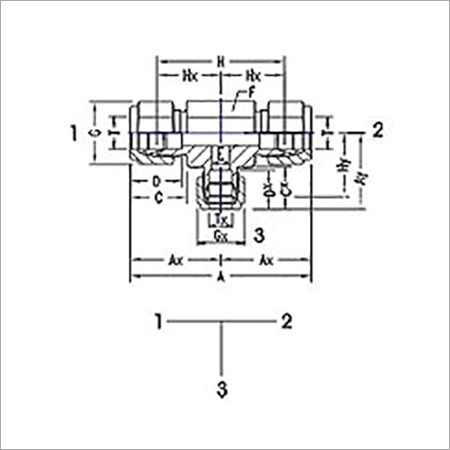

Technical specification

T
Tube OD

Tx
Tube OD

A

Ax

Ay

C

Cx

D

Dx

E
min.

F
A/F

G
A/F

Gx
A/F

H

Hx

Hy

Fluid Controls
Part No.

3/8

1/4

59.4

30.5

29.0

19.3

17.8

16.8

15.3

4.8

16

17

14

44.7

23.1

21.6

6/4/6 STR

1/2

1/4

67.7

36.0

31.7

21.8

17.8

22.9

15.3

4.8

22

22

14

50.2

25.9

24.4

8/4/8 STR

1/2

3/8

69.3

36.0

33.3

21.8

19.3

22.9

16.8

7.1

22

22

17

51.8

25.9

25.9

8/6/8 STR

3/4

3/8

77.0

39.9

37.1

21.8

19.3

24.4

16.8

7.1

27

28.5

17

59.4

29.7

29.7

12/6/12 STR

3/4

1/2

79.8

39.9

39.9

21.8

21.8

24.4

22.9

10.4

27

28.5

22

59.4

29.7

29.7

12/8/12 STR

1

3/8

98.9

49.0

41.9

26.4

19.3

31.2

16.8

7.1

35

38

17

71.3

36.8

34.5

16/6/16 STR

1

1/2

93.7

49.0

44.7

26.4

21.8

31.2

21.8

10.4

35

38

22

71.3

36.8

34.5

16/8/16 STR

1

3/4

93.7

49.0

44.7

26.4

21.8

31.2

24.4

15.8

35

38

28.5

71.3

36.8

34.5

16/12/16 STR

1.1/4

1

119.6

67.8

53.0

38.9

26.4

41.2

31.2

18.2

46

50

38

85.3

45.7

40.8

20/16/20 STR

1.1/2

1

150.9

78.7

72.9

45.2

38.9

50.0

41.3

27.6

55

57

38

101.6

50.8

50.8

24/20/24 STR
