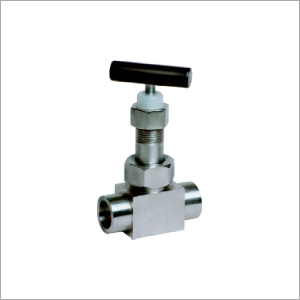

Union Bonnet Type Butt Weld Ends Shut Off Valve

Union Bonnet Type Butt Weld Ends Shut Off Valve
Union Bonnet Type Butt Weld Ends Shut Off Valve
Send Inquiry
Product Code : 13
Price And Quantity
  • Unit of Measure
  • ,
Product Description

Since years, we have been engaged in manufacturing and exporting the best range of Union Bonnet Type Butt Weld Ends Shut Off Valve. This valve is best known for its simple and light weight design. Ideal for use in instrumentation and small installation for isolation, these valves are the best alternative to heavy bolted bonnet OS & Y type valves. We are offering this Union Bonnet Type Butt Weld Ends Shut Off Valve to clients in a wide range of specifications for meeting their exact needs.

Features:

  • Can withstand extreme temperatures and pressures
  • Leak proof design
  • Completely resistant to acids and chemicals

DESCRIPTION

A simple light weight design ideal for use in instrumentation and small installation for isolation in place of heavy bolted bonnet OS & Y type valves.

Test Pressure

PER ANSI B 16.34, 1996 @ 25° C Room Temperature
800#      1500#   2500#

Hydrostatic

Body - 210 Kg/cm2 - 420 Kg/cm2 - 630 Kg/cm2
Seat - 153 Kg/cm2 - 270 Kg/cm2 - 420 Kg/cm2

Pneumatic

Seat - 6 Kg/cm2     - 6 Kg/cm2     - 6 Kg/cm2

Gland Packing

PTFE : Standard
Graphoil : Temperatures above 180° C

Material

A 105, A 182 Gr.F 304 SS, A 182 Gr.F 316 SS, A 182 Gr F11,A 182 Gr F 22

Finish

CS zinc plated and dichromated. SS - Natural


CONNECTIONS

Socket Weld Ends

PIPE

B SIZE

L

A

H OPEN HT.

PART No.

1/2"

21.7

10.0

76

121

8 SOV NB-SW-UB

3/4"

27.0

13.0

85

125

12 SOV NB-SW-UB

1"

33.8

14.0

95

125

16 SOV NB-SW-UB


Butt Weld Ends

PIPE SIZE

B

H OPEN HT.

PART No.

1/2"

21.34

121

8 SOV NB-SW-UB

3/4"

26.67

125

12 SOV NB-SW-UB

1"

33.40

125

16 SOV NB-SW-UB
